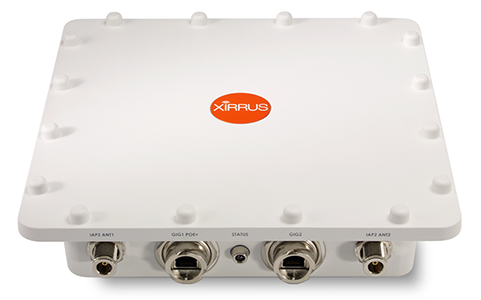

Xirrus XH2-120 Outdoor Access Points
Designed With Ultra Performance And Density
Cambium Networks have acquired Xirrus! For the latest Xirrus' products please visit our Cambium Networks site.
Sorry, this product is no longer available, replaced by the XH2-240.
Overview:
Hardened XR Wireless Access Point with two 867 Mbps 802.11ac Wave 1 radios.
Includes:
- Environmentally hardened chassis, IP65 rated
- 2 867 Mbps radios - selectable 5GHz/2.4GHz operation
- 2 N-type connectors for external antennas per radio
- Integrated wireless controller
- 2 10/100/1000 Ethernet Uplink Ports
- AOS operating system including automatic RF tuning (channel, cell size), wireless IDS/IPS, stateful firewall, multicast video optimization, WDS point-to-point, RADIUS server, captive portal, and much more.
- Requires external antennas - see ANT-xxx-1X1-xxx and ANT-xxx-2X2-xxx options for XH2
- Requires power from 802.3at compatible switch or purchase of PoE+ injector supporting 30W or more power (excluding XP1-MSI-33)
- Includes 5 Year Hardware Product Warranty with return and repair. Order SU-HW-XH2-x for advanced replacement support.
- Includes 90 day Software Product Warranty. Order SU-AOS-XH2-x for software upgrade support.
Heat and humidity, wind and snow, sandy desert conditions, and dusty industrial areas—no matter what grueling environmental conditions exist, Xirrus ruggedized dual radio APs deliver reliable Gigabit Wi-Fi connectivity in any atmosphere.
XH2 access points feature flexible mounting options to accommodate a variety of locations and structural designs as well as a range of antennae to service a diversity of applications.
Xirrus XH2 APs include a robust set of tools to manage users, devices, applications, and traffic using the Xirrus Management System (XMS), which can be operated from the cloud or on-premise.
Benefits
- Plug-and-play deployment and zero touch configuration
- Designed to operate under harsh conditions with IP 65 rating
- Built to withstand humidity and outdoor weather conditions
- Supports guest access, point-of-sale systems, digital displays, sensors and more
At a Glance
- Support for 802.11ac Gigabit Wi-Fi
- 2x the density of other outdoor solutions
- Flexible coverage options using external antennas
- Operates in extreme weather conditions
- No central controller – each AP operates autonomously
Benefits:
Extreme Durability
Xirrus Outdoor Access Points are hardened for operation against all types of weather elements and grueling environmental conditions, plus they are sealed to protect against moisture and contaminants. Based on the same flexible and scalable design as our indoor products, Xirrus Outdoor APs ensure fast, reliable Wi-Fi service anywhere you deploy.Scope of Use
Even in remote outdoor locations, Xirrus Outdoor APs provide seamless Wi-Fi to service a range of applications, including guest/fan access, point-of-sale systems, video surveillance, industrial monitoring, Wi-Fi bridging, and more.High Performance
Xirrus Outdoor APs deliver high performance Wi-Fi access with up to four radios for high device density scenarios and up to 1.3Gbps 802.11ac speeds to meet high capacity demands. TurboXpress provides the flexibility to set every radio to high performance 5GHz with the click of a mouse.Ease of Management
Xirrus Outdoor APs include a comprehensive set of tools to manage users, devices, applications, and traffic with complete visibility. The Xirrus Management System (XMS) operates from the cloud or on-premise from a single console.Hardened for Extreme Conditions
Designed with an IP65 rating, Xirrus Outdoor APs can withstand extreme temperatures, rain, humidity, and dust as well as harsh manufacturing environments, thereby ensuring the same reliable Wi-Fi service as indoors.Easy of Implemention
Xirrus Outdoor APs provide for flexible deployment options with a range of model types, mounting choices, and antennas. Zero-touch provisioning ensures fast turn up of new installations.Simplified Access Management
Xirrus EasyPass Access Services, a free service integrated with Xirrus Management System-Cloud (XMS-Cloud), provides a highly secure, single dashboard solution to administer and manage wireless network access. EasyPass simplifies the process of connecting users with self-provisioned access for guests and easy onboarding of BYOD devices for employees.Specifications:
Deliver ubiquitous Wi-Fi even in the most challenging of the environments. Purpose built for outdoors, these APs are sealed in a hardened case to protect from dust, wind and rain. Cold and heat aren’t a problem either, because these APs are rated operate from -20° C to 55° C (-4° F to 131 F). These APs are ideally is ideally suited for outdoor campus areas, concert fields, racetracks, and other high-density outdoor applications. Maximize the Wi-Fi coverage with a choice of external antennas to meet your specific requirements.
| XR-500H | XR-2000H | XH2 | |
|---|---|---|---|
| Chassis Dimensions | 7.7” X 9.875” X 10.125” | 11.4” X 11.8” X 4.2” | 7.7” X 9.875” X 10.125” |
| Supported Standards | 802.11a/b/g/n | 802.11a/b/g/n | 802.11a/b/g/n/ac |
| Total Number of Radios | 2 | 4 | 2 |
| Radio Type | 2x2, 300Mbps | 2x2, 300Mbps | 2x2, 867Mbps |
| MIMO Technology | SU-MIMO | SU-MIMO | SU-MIMO |
| Maximum Wi-Fi Bandwidth | 600Mbps | 1.2Mbps | 1.7Gbps |
| Wi-Fi Threat Sensor | Yes | Yes | Yes |
| Maximum Wi-Fi Backhaul (WDS) | 300Mbps | 900Mbps | 867Mbps |
| Maximum Associated Devices | 480 | 960 | 390 |
| Antenna Connectors | 4 RP-TNC | 8 RP-TNC | 4 N-type |
| Wired Uplinks Modes: 802.3ad (link aggregation), broadcast, link backup (failover), load balance |
1GbE | 2-1GbE | 2-1GbE |
| Maximum Power Consumption | 12.5W (PoE+) | 30W | 25.5W (PoE+) |
| Weight | 5lbs | 9lbs | 6lbs |
| FEATURE | SPECIFICATIONS | |
|---|---|---|
| RF Management | In-band per IAP Spectrum Analysis Dynamic channel configuration Dynamic cell size configuration Monitor radio for threat assessment and mitigation Wired and wireless packet captures (including all 802.11 headers) Wired and Wireless RMON / Packet Captures Radio assurance for radio self test and healing |
RF monitor 2.4 & 5Ghz Honeypot Control – Increase available 2.4 & 5Ghz wireless device density through management of spurious 2.4 & 5Ghz association traffic. Ultra Low Power Mode – Maximize wireless channel re-use and increase wireless device density through tight power controls. |
| High Availability | Supports hot stand-by mode for mission critical areas | |
| Environmentally Friendly | Supports ability to turn off radios based on schedule configuration | |
| Wireless Protocols | IEEE 802.11a, 802.11ac*, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11u, 802.11w | |
| Wired Protocols | IEEE 802.3 10BASE-T, IEEE 802.3.u 100BASE-TX , 1000BASE-T, 802.3ab 1000BASE-T IEEE 802.1q – VLAN tagging IEEE 802.1AX – Link aggregation IEEE 802.1d – Spanning tree IEEE 802.1p – Layer 2 traffic prioritization IPv6 Control – Increase wireless device density through control of unnecessary IPv6 traffic on IPv4-only networks. DHCP option 82 |
|
| Carrier Applications | Passpoint 2.0 Certification | |
| RFC Support | RFC 768 UDP RFC 791 IP RFC 2460 IPV6 (Bridging only) RFC 792 ICMP RFC 793 TCP |
RFC 826 ARP RFC 1122 Requirements for internet hosts – communication layers RFC 1542 BOOTP RFC 2131 DHCP |
| Security | WPA IEEE 802.11i WPA2, RSN RFC 1321 MD5 Message-digest algorithm RFC 2246 TLS protocol version 1.0 |
RFC 3280 Internet X.509 PKI certificate and CRL profile RFC 4347 Datagram transport layer security RFC 4346 TLS protocol version 1.1 |
| Encryption Types | Open, WEP, TKIP-MIC: RC4 40, 104 and 128 bits SSL and TLS: RC4 128-bit and RDA 1024 and 2048 bit |
|
| Authentication | IEEE 802.1x RFC 2548 Microsoftvendor-specific RADIUS attributes RFC 2716 PPP EAP-TLS RFC 2865 RADIUS Authentication RFC 2866 RADIUS Accounting RFC 2867 Tunnel Accounting RFC 2869 RADIUS Extensions RFC 3576 Dynamic Authorizations extensions to RADIUS RFC 3579 RADIUS Support for EAP RFC 3748 EAP-PEAP |
RFC 5216 EAP-TLS RFC 5281 EAP-TTLS RFC 2284 EAP-GTC RFC 4186 EAP-SIM RFC 3748 Leap Passthrough RFC 3748 Extensible Authentication Protocol Web Page Authentication • WPR, Landing Page, Redirect • Support for Internal WPR, Landing Page and Authentication • Support for External WPR, Landing Page and Authentication • Support for Xirrus Guest Access System |
| Regulatory Compliance | CE Mark Safety: • UL 60950-1:2003 • EN 60950:2000 • EMI and susceptibility (Class A) |
• U.S.:FCC Part 15.107 and 15.109 • Canada: ICES-003 • Japan: VCCI • Europe: EN 55022, EN 55024 • EN 60601-1-2 • EN 301 893 V1.6.1 |
| Environmental Specifications | Operating Temperature: -20C to +55C, 0-90% humidity, non-condensing Storage Temperature: -40C to 70C IP65 Rated |
|
| Channel Support 2.4GHz (Channel selections are based upon country code selections) |
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14 | |
| Channel Support 5GHz (Channel selections are based upon country code selections) |
U-NII-1 – Non-DFS channels 36 40 44 48 U-NII-2A DFS channels* 52 56 60 64 |
U-NII-2C DFS channels* 100 104 108 112 116 120 124 128 132 136 140 144 U-NII-3 Non-DFS channels 149 153 157 161 165 |
| Management Interfaces | Command line interface Web interface (http / https) | Xirrus Management System (XMS) XMS-Cloud XMS-Enterprise |
| Management | SNMP v1, v2c, v3 RFC 854 Telnet RFC 1155 Management Information for TCP/IP Based Internets RFC 1156 MIB RFC 1157 SNMP RFC 1212 Concise MIB Definitions RFC 1213 SNMP MIB II RFC 1215 A Convention for Defining Traps for use with the SNMP RFC 1350 TFTP RFC 1643 Ethernet MIB RFC 2030 Simple Network Time Protocol SNTP RFC 2578 Structure of Management Information Version 2 (SMIv2) RFC 2579 Textual Conventions for SMIv2 RFC 2616 HTTP 1.1 RFC 2665 Definitions of Managed Objects for the Ethernet Like Interface Types |
RFC 2674 Definitions of Managed Objects for Bridges with Traffic Classes, Multicast Filtering and Virtual LAN Extensions RFC 2819 Remote Network Monitoring Management Information Base RFC 2863 The Interface Group MIB RFC 3164 BSD Syslog Protocol RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3) RFC 3416 Version 2 of the Protocol Operations for the Simple Network Management Protocol (SNMP) RFC 3417 Transport Mappings for the Simple Network Management Protocol (SNMP) RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol (SNMP) RFC 3584 Coexistence between Version 1, Version 2, and Version 3 of the Internet-standard Network Management Framework RFC 3636 Definitions of Managed Objects for IEEE Xirrus Private MIBs Integration with Splunk for accurate search and analysis of intra- organizational IT events Netflow Export v9 and IPFIX compatibility allows for IP traffic statistics collection |
Comparision:
Right Sized Wi-Fi For Every Use
| Model | XR-320 | X2 | XR-600 | XD2 | XD4 | XR-2000 | XR-4000 | XR-6000 |
|---|---|---|---|---|---|---|---|---|
| Max Number of Radios | 2 | 2 | 2 | 2 | 4 | 4 | 8 | 16 |
| Technology | 11ac Wave 1 | 11ac Wave 1 | 11ac Wave 1 | 11ac Wave 2 | 11ac Wave 1 | 11ac Wave 1 | 11ac Wave 1 | 11ac Wave 1 |
| Technology Upgradable | NA | NA | NA | NA | NA | 11ac Wave 2 | 11ac Wave 2 | 11ac Wave 2 |
| TurboXpress (all radios 11ac) | NA | NA | Yes | Yes | Yes | Yes | Yes | Yes |
| Controller | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated |
| Uplinks | 1 GigE | 1 GigE | 2 GigE | 2 GigE | 2 GigE | 2 GigE | 2 GigE | 4 GigE/1-10 GigE |
| Example Uses | Hotels / Dorms / Hospitals / Offices | Offices / Hotels / Classrooms / Retail | Offices / Classrooms / Hospitals / Retail | Dense Offices / Classrooms / Hospitals | Dense Offices / Classrooms / Conf Rooms | Dense Offices / Classrooms / Conf Rooms | Libraries / Auditoriums / Conventions | Auditoriums / Conventions / Arenas |
Outdoor Wi-Fi Portfolio
| Product Series | XR-520H | XH2 | XR-2425H | Outdoor Enclosures / HD Access Points |
|---|---|---|---|---|
| Number of Radios | 2 | 2 | 4 | 4-16 |
| Technology | 802.11n | 802.11ac | 802.11n | 802.11ac |
| Technology Upgradable | NA | NA | NA | Yes – 11ac Wave 2 |
| TurboXpress (all radios on 5GHz) | Yes | Yes | Yes | Yes |
| Controller | Integrated | Integrated | Integrated | Integrated |
| Uplinks | 1 GigE | 2 GigE | 2 GigE | Up to 4 GigE & 1-10 GigE |
| Example Uses | General Coverage / Warehouses | General Coverage / Stadiums/Arenas | Outdoor Event Venues / Stadiums/Arenas | Outdoor Event Venues / Stadiums/Arenas |
Documentation:
Download the Xirrus Outdoor Access Points Product Brief Datasheet (PDF).
